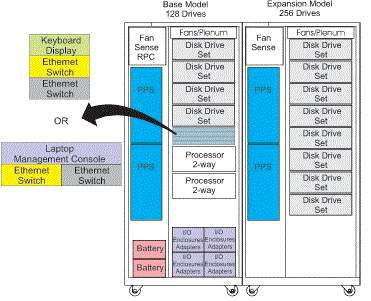

Figure 1. Maximum configuration for Model 921 or Model 931
IBM DS8100 921 or Model 931 ibm DS8300 Models 922 932 9A2 and 9B2 FRU PN 01 技术服务
The IBM DS8100, which is Model 921 and Model 931, offers many features.

The DS8100 provides the following features:

Dual two-way processor complex
Up to 128 disk drives, for a maximum capacity of 128 TB
Up to 128 GB of processor memory (cache)
Up to 16 Fibre Channel (or FICON) or ESCON® host adapters

The DS8100 base models can support one expansion model. With one expansion model, you can expand the capacity of the Model 921 or Model 931 with up to 384 disk drives, for a maximum capacity of 384 TB.
Note IBM service representatives can upgrade a Model 921 or Model 931 in the field. The update occurs when you order a model conversion to a Model 922, Model 932, Model 9A2, or Model 9B2. Model conversions are not available from Models 92x or 9Ax to Models 93x or 9Bx.

The image in Figure 1 shows the maximum configuration of a Model 921 or Model 931, which is the 921 or the 931 base model plus one 92E expansion model.
