IBM System Storage DS8300 models (Models 922, 932, 9A2, and 9B2) offer higher performance and capacity than the DS8100. With Models 9A2 and 9B2, you can create two storage system LPARs (images) within the same storage unit.

All DS8300 models offer the following features:

Dual 4-way processor complex

Up to 128 disk drives, for a maximum capacity of 128 TB

Up to 256 GB of processor memory (cache)

Up to 16 Fibre Channel/FICON or ESCON® host adapters

ibm DS8300 Models 922 932 9A2 and 9B2 FRU PN 01 技术服务

The DS8300 base models can support up to four expansion models. With expansion models, you can expand the Models 922, 932, 9A2, and 9B2 as follows:

With one expansion model, you can support the following expanded capacity and number of adapters:

Up to 384 disk drives, for a maximum capacity of 384 TB

Up to 32 Fibre Channel/FICON or ESCON host adapters

With two expansion models, you can support the following expanded capacity:

Up to 640 disk drives, for a maximum capacity of 640 TB

With three expansion models, you can support the following expanded capacity:

Up to 896 disk drives, for a maximum capacity of 896 TB

With four expansion models, you can support the following expanded capacity:

Up to 1024 disk drives, for a maximum capacity of 1024 TB

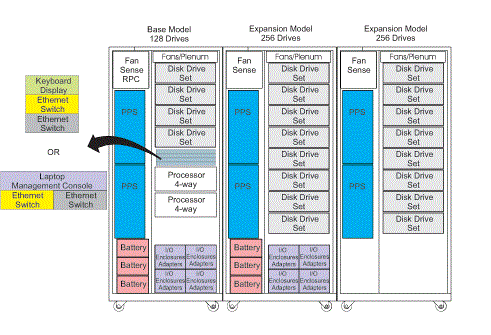

Figure 1 shows the configuration of a Model 922, 932, 9A2, or 9B2 with two expansion models. Each of these models can attach up to four expansion models. Models 922 and 932 can attach to the 92E expansion models. Models 9A2 and 9B2 can attach to the 9AE expansion models.

Figure 1. Configuration for Model 922, 932, 9A2, or 9B2 with two expansion models

Storage unit grouping with one 922 and two 92E

DS8300 overview

The DS8300 Models 932 and 9B2 offer higher storage capacity than the DS8100, and they provide greater throughput by means of their dual four-way processor implementation.
