ibm p8 5147-024, ESLL, or ESLS storage enclosure system parts、CCIN、FRU、PN

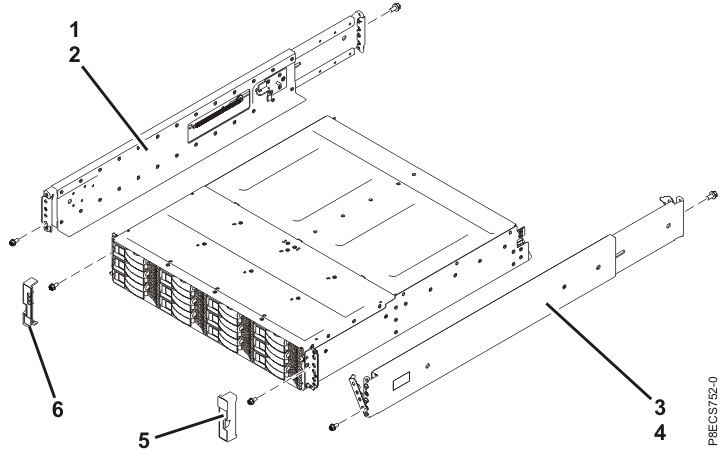

Index number	CCIN	Part number	Units	Description	Mobile Phone
1		00RY309	1	Rail kit (left slide rail assembly)
2			2	Attaching screw for the left slide rail assembly
3		00RY309	1	Rail kit (right slide rail assembly)
4			2	Attaching screw for the right slide rail assembly
5		00Y2436	1	Right bezel
6		01DH721	1	Left bezel

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
1		00RY309	1	Rail kit (left slide rail assembly)
2			2	Attaching screw for the left slide rail assembly
3		00RY309	1	Rail kit (right slide rail assembly)
4		00E3324	2	Attaching screw for the right slide rail assembly
5		00Y2512	1	Right bezel
6		01YK724	1	Left bezel (5147-024)
6		01DH721	1	Left bezel (ESLS)

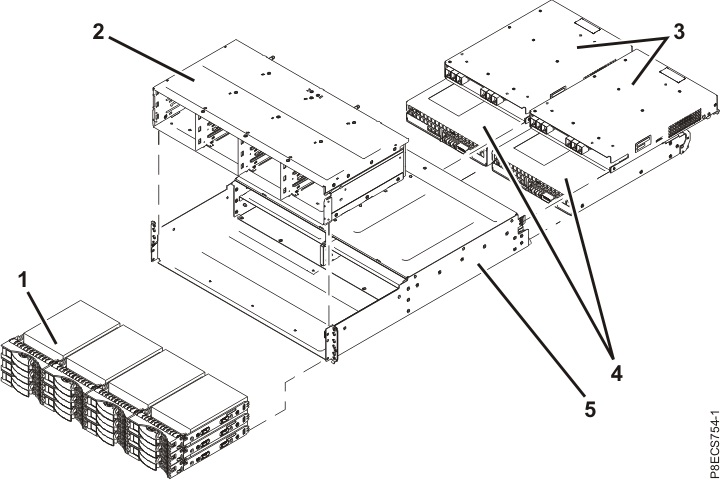

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
1			1	Large form factor drive. See Disk drive and solid-state drive system parts.
2		64P8446	1	Midplane assembly
3		01DH720	2	Enclosure Services Manager (ESM)
4		01AC404	2	Power supply
5			1	Enclosure chassis

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
1			1-24	Small form factor drive. See Disk drive and solid-state drive system parts.
2		64P8447	1	Midplane assembly
3		01DH720	2	Enclosure Services Manager (ESM) - ESLS/font>
3		01JC767	2	Enclosure Services Manager (ESM) - 5147-024
4		01AC404	2	Power supply
5			1	Enclosure chassis

Description	Part number	Mobile Phone
External cables and cords	See Planning for cables.
Cable configuration	See Enclosures and expansion units..
Disk drive filler (ESLL)	42R7992
Disk drive filler (5147-024 or ESLS)	45W8680
