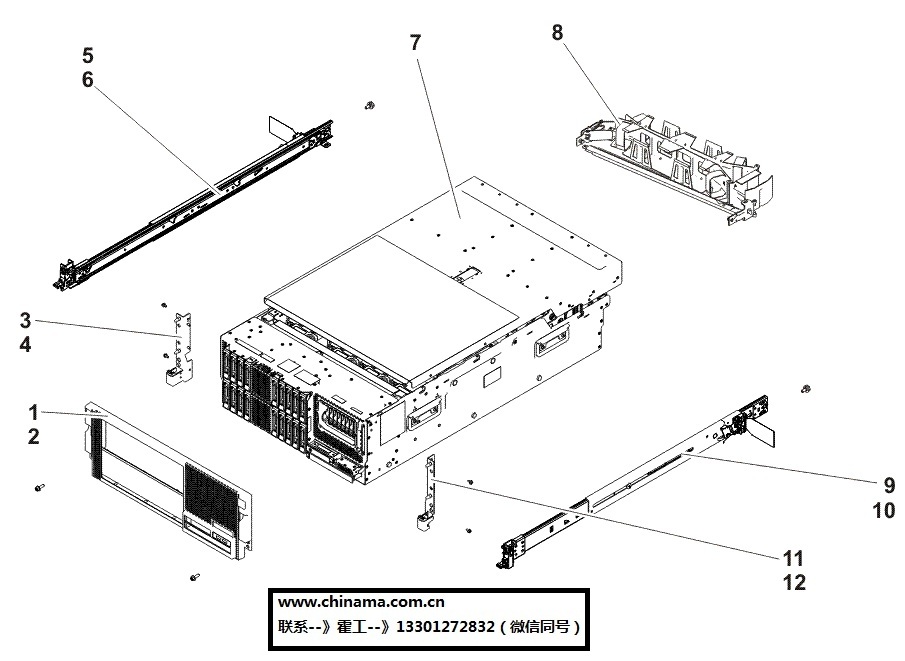

8247-42L, S814(8286-41A), or S824(8286-42A) system parts

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
1		00FV769	1	Front bezel
2			2	Attaching screw for front bezel
3		46K5096	1	EIA bracket (left)
4			2	Attaching screw for EIA bracket (left)
5		68Y7226	1	Rail kit - contains left and right rails and attaching screws
7			1	Top access cover assembly
8		74Y9063	1	Cable management arm assembly
9		68Y7226	1	Rail kit - contains left and right rails and attaching screws
10			1	Attaching screw for rail kit
11		46K5097	1	EIA bracket (right)
12			2	Attaching screw for EIA bracket (right)

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
13			1	DVD drive. See Managing DVD drives.
14		00FX140	1	DVD drive retain latch
15			1-12	See Disk drive and solid-state drive system parts.
16		00E1966	1	Control panel assembly.
17	2B09	00E1945	1	Disk drive backplane
18		00FX078	1	Fan cage assembly
19		00FV629	1-4	80 mm fan assembly
20		00FX092	1	Processor and memory air baffle
21	561A	74Y4326	1	System VPD card (8247-42L)
21	52F2	00E2152	1	System VPD card (8286-41A)
21	52FE	00E2147	1	System VPD card (8286-42A)
22		74Y9628	1	Time-of-day battery
23		00E1960	1	System I/O card
24		00E7284	1	Rear USB cable
25		00FV613	1	USB cable cover
26		00E7283	1	Front USB cable

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
27	31E8	00VK193	1 - 8 or 1 - 16	16 GB, 1600 MHz DDR3 DIMM
27	31EC	00VK252	1 - 8 or 1 - 16	16 GB, DDR4 CDIMM
27	31E9	00VK195	1 - 8 or 1 - 16	32 GB, 1600 MHz DDR3 DIMM
27	31E9	00VK195	1 - 8 or 1 - 16	32 GB, 1600 MHz DDR3 DIMM
27	31ED	00VK296	1 - 8 or 1 - 16	32 GB, DDR4 CDIMM
27	31EA	00VK197	1 - 8 or 1 - 16	64 GB, 1600 MHz DDR3 DIMM
27	31EE	00VK306	1 - 8 or 1 - 16	64 GB, DDR4 CDIMM
27	31EB	00VK198	1 - 8 or 1 - 16	128 GB, 1600 MHz DDR3 DIMM
27	31EF	00VK351	1 - 8 or 1 - 16	128 GB, DDR4 CDIMM
27	31FC	00VK243	1 - 8 or 1 - 16	256 GB, DDR4 CDIMM (8247-42L and 8286-42A)
27		00FW989	1 - 8 or 1 - 16	DIMM filler
28		00FV613	1	SAS cable cover
29		00FW232	1	PCIe3 SAS RAID internal adapter filler
30		00FV690	1-2	Disk drive backplane SAS signal cable (short) Note Used with the adapter at location Un-P1-C14.
31	57D7	00MH908	1	PCIe3 x8 SAS RAID internal adapter
32		00FX087	1-10	PCI adapter divider (one light pipe)
33	31E8	00VK192	1 - 11	PCI tailstock
34		00FV454	1 - 11	PCI adapters. Use the CCIN or feature type of the adapter to find the FRU number in PCI adapter information by feature type.
35		00FX090	1	PCI adapter divider (two light pipes)
36			1-4	Power supply filler
37	2B1E	94Y8157	1-4	1400 W power supply assembly (200-240 VAC)
37	2B75	00RR025	1-4	1400 W power supply assembly (192-400 HVDC, 8286-41A or 8286-42A)
38			1-4	Power supply filler - Small form factor (SFF)
39	2B1D	00FV929	1-4	900 W power supply assembly

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
13			1	DVD drive. See Managing DVD drives.
14		00FX140	1	DVD drive retain latch
15			1 - 12	See Disk drive and solid-state drive system parts.
16		00E1966	1	Control panel assembly
17	2B0F	00E1976	1	Disk drive backplane
18		00FX078	1	Fan cage assembly.
19		00FV629	1-4	80 mm fan assembly
20			1	Processor and memory air baffle
21	561A	74Y4326	1	System VPD card (8247-42L)
21	52F2	00E2152	1	System VPD card (8286-41A)
21	52FE	00E2147	1	System VPD card (8286-42A)
22		74Y9628	1	Time-of-day battery (8284-22A)
23		00E1960	1	System I/O card
24		00E7284	1	Rear USB cable
25			1	USB cable cover
26		00E7283	1	Front USB cable
27		00FW699	1	SSD cage
28			2	Attaching screws for SSD cage
29			1-8	See Disk drive and solid-state drive system parts.

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
45	2CD4	00E1962	1	System backplane (8247-42L or 8286-42A)
45	2CD5	00E1964	1	System backplane (8286-41A)
46			12	Attaching screws for system backplane
47	54E9	00FX975	1-2	4 core 3.02 GHz processor module (8286-41A)
47	54E1	00FX523	1-2	6 core 3.02 GHz processor module (8286-41A)
47	54E6	00FX522	1-2	6 core 3.89 GHz processor module (8286-42A)
47	54E0	00FX557	1-2	8 core 3.72 GHz processor module (8286-41A rack model)
47	54E5	00FX519	1-2	8 core 4.15 GHz processor module (8286-42A)
47	54E8	00FX518	1-2	10 core 3.42 GHz processor module (8247-42L)
47	54E4	00FX520	1-2	12 core 3.02 GHz processor module (8247-42L)
47	54E3	00FX516	1-2	12 core 3.52 GHz processor module (8286-42A)
48		00E8868	1-2	Heat sink

Description	Units per assembly	Mobile Phone
6-meter RS232 cable	00FW217
Disk drive backplane power cable (base function)	00FX686
Disk drive backplane power cable (base function or expanded function)	00FV872
Disk drive backplane signal cable	00FV876
Graphics cable	00E3060
Operator panel cable	00E7291
Power distribution board (PDB) signal cable	00FW701
