ibm p8 EMX0 PCIe Gen3 I/O expansion drawer system parts 销售

产品

ibm p8 EMX0 PCIe Gen3 I/O expansion drawer system parts、CCIN、FRU、PN

Index number	CCIN	Part number	Units	Description	Mobile Phone
1		00FV896	1	Front bezel
2			1	Attaching screws for the front bezel
3		44V8572	1	Rail kit (not all parts in the kit are used for the EMX0 PCIe Gen3 I/O expansion drawer)
4		90P1959	2	Attaching screw for rail kit
5		00FY274	2	Cable management bracket assembly
6			4	Attaching screws for the cable management bracket assembly
7			1	Nut clips for the cable management bracket assembly

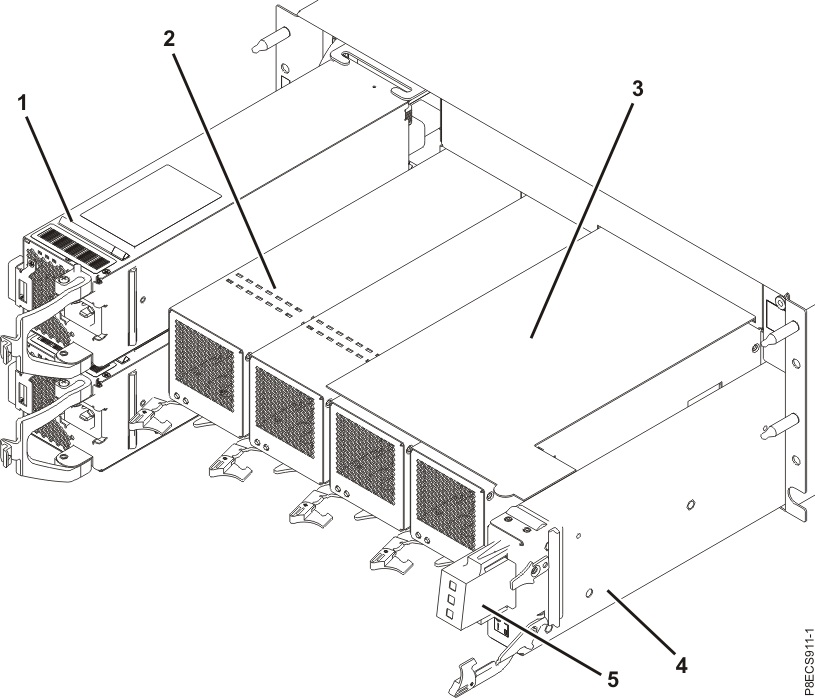

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
1	51D3	00FX951	1	Power supply
2	50D0	00RP836	4	Fan
3		00E7333	1 - 7	PCI adapter divider (one light pipe)
4	50C7	00TK681	1	Chassis management card
5		00FV844	1	Chassis management card light-pipe assembly

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
1		41T9177	1	AC power conduit
1		01AF307	1	DC power conduit
2			1	Rear service booklet
3	50CF	00RP693	1 - 2	Voltage regulator module
4	50CB	00TK674	1-2	PCIe3 6-slot fanout module
5	50C8	00LY054	1	Midplane
6		44V4768	1-12	Blind swap cassette for PCIe adapters. To find the part number of a PCIe adapter, use the CCIN or feature type of the adapter to find the FRU number in PCIe adapter information by feature type.
6		46K6170	1-4	Blind swap cassette for PCIe Cryptographic Coprocessor. To find the part number of a PCIe adapter, use the CCIN or feature type of the adapter to find the FRU number in PCIe adapter information by feature type.
7		41T9176	1	Light pipe conduit assembly

Description	Part number	Mobile Phone
2-meter active optical cable (AOC) for 9080-MHE, 9080-MME, 9119-MHE, or 9119-MME only	78P3967
3-meter active optical cable (AOC) for 8247-21L, 8247-22L, 8247-42L, 8284-22A, 8286-41A, 8286-42A, and 8408-E8E only	78P4418
10-meter active optical cable (AOC)	78P3776
20-meter active optical cable (AOC) for 9080-MHE, 9080-MME, 9119-MHE, or 9119-MME only	78P4536
3-meter expansion drawer cable (copper)	01KL050 Note Copper expansion drawer cables are not supported on 9080-MHE, 9080-MME, 9119-MHE, and 9119-MME systems.

Description	Part number	Mobile Phone
External cables and cords	See Planning for cables.
Cable configuration	See Enclosures and expansion units.
Tailstock filler	39J0260
I/O module filler	00FX483
