ibm p8 EMX0 PCIe Gen3 I/O expansion drawer system parts
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

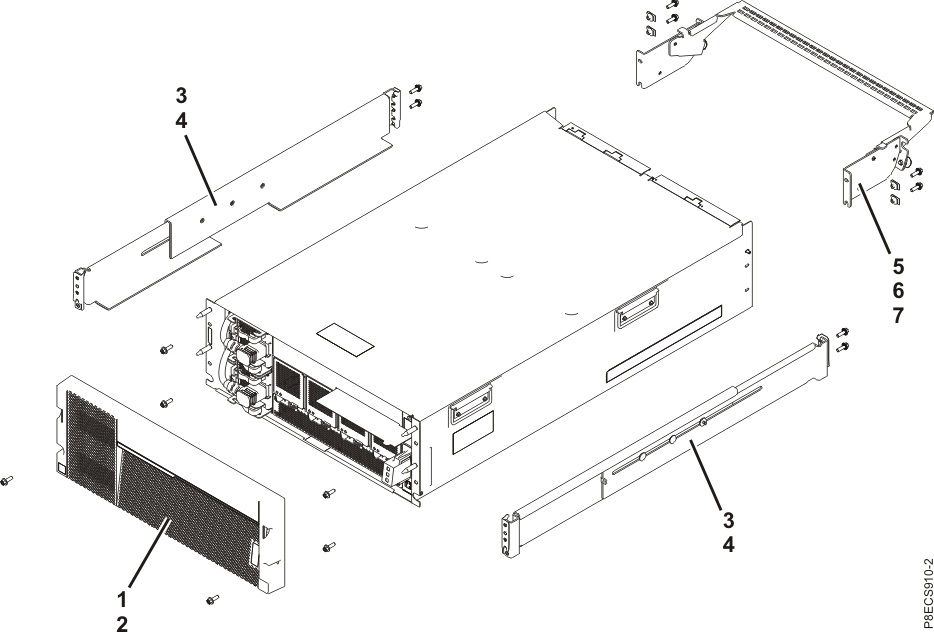

Table 1. Final assembly part numbersIndex number CCIN Part number Units Description
1 00FV896 1 Front bezel
2 2 Attaching screws for the front bezel
3 44V8572 1 Rail kit (not all parts in the kit are used for the EMX0 PCIe Gen3 I/O expansion drawer)
4 2 Attaching screw for rail kit
5 00FY274 1 Cable management bracket assembly
6 4 Attaching screws for the cable management bracket assembly
7 4 Nut clips for the cable management bracket assembly
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Table 2. System assembly part numbersIndex number CCIN Part number Units Description
1 51D3 00FX951 2 Power supply
2 50D0 00RP836 4 Fan
3 1 Front service card
4 50C7 00TK681 1 Chassis management card
5 00FV844 1 Chassis management card light-pipe assembly
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Table 3. System assembly part numbersIndex number CCIN Part number Units Description
1 41T9177 1 AC power conduit
1 01AF307 1 DC power conduit
2 1 Rear service booklet
3 50CF 00RP693 1 - 2 Voltage regulator module
4 50CB 00TK674 1 - 2 PCIe3 6-slot fanout module
5 50C8 00LY054 1 Midplane
6 44V4768 1 - 12 Blind swap cassette for PCIe adapters. To find the part number of a PCIe adapter, use the CCIN or feature type of the adapter to find the FRU number in PCIe adapter information by feature type.
6 46K6170 1 - 4 Blind swap cassette for PCIe Cryptographic Coprocessor. To find the part number of a PCIe adapter, use the CCIN or feature type of the adapter to find the FRU number in PCIe adapter information by feature type.
7 41T9176 1 Light pipe conduit assembly
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Table 4. CablesDescription Part number
2-meter active optical cable (AOC) for 9080-MHE, 9080-MME, 9119-MHE, or 9119-MME only 78P3967
3-meter active optical cable (AOC) for 8247-21L, 8247-22L, 8247-42L, 8284-22A, 8286-41A, 8286-42A, and 8408-E8E only 78P4418
10-meter active optical cable (AOC) 78P3776
20-meter active optical cable (AOC) for 9080-MHE, 9080-MME, 9119-MHE, or 9119-MME only 78P4536
3-meter expansion drawer cable (copper) 01KL050
Note Copper expansion drawer cables are not supported on 9080-MHE, 9080-MME, 9119-MHE, and 9119-MME systems.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////
able 5. Miscellaneous partsDescription Part number
External cables and cords See Planning for cables.
Cable configuration See Enclosures and expansion units.
Tailstock filler 39J0260
I/O module filler 00FX483
/////////////////////////////////////////////////////////////////////
