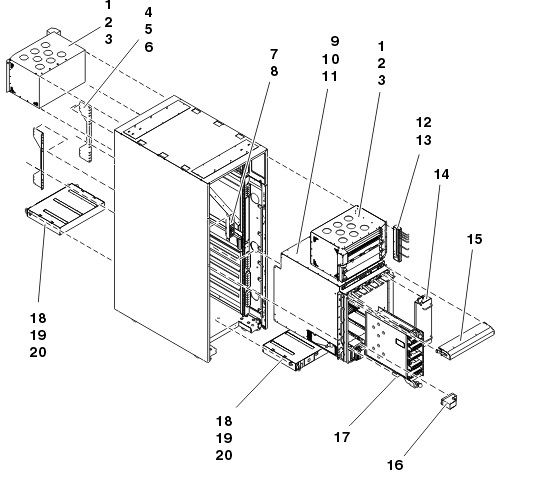

Index number Part number Units per assembly Description
1 12R9749* 44P4543** 1 Bulk power assembly
2 See Power parts AR Bulk power distribution assembly
3 See Power parts 1 Bulk power controller assembly
4 15R6711* 12R8143** AR Bulk power regulator assembly
5 12R9323* 44P3865** 1 Bulk power fan
6 44P0550* 11P0287** 1 Cover, bulk power fan

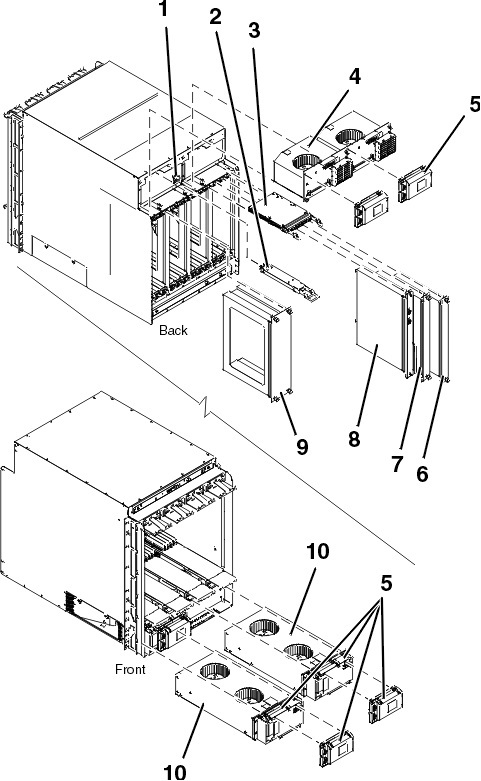

Table 4. Processor subsystem assembly part numbers
Index number Part number Units per assembly Description
1 See VPD parts 1 VPD card
2 See Processor parts 1 Oscillator (clock) card
3 See Processor parts AR Service processor card
4 12R9148* 12R6666** 1 Motor scroll assembly
5 41U0341* 12R9038** 4 Motor drive assembly
6 41U0328* 12R6949** AR Filler, distributed converter assembly (DCA) - single
7 41U0013* 12R6950** AR Jumper, distributed converter assembly (DCA)
8 15R6709* 12R9471** AR Distributed converter assembly (DCA)
9 12R6732* AR Filler, distributed converter assembly (DCA) - triple
10 12R9201* 12R8361** 1 Blower assembly, right
12R9200* 12R6227** 1 Blower assembly, left
See Backplane parts 1 System backplane
Table 5. Node assembly part numbers
Index number Part number Units per assembly Description
1 12R7089* AR Cable clamp
2 12R7088* 1 Cable management bracket
3 AR Screw
4 SeeBus parts AR RIO/HSL card
5 See Processor parts AR Multiplexer card
6 SeeMemory parts AR Memory card
41V0808* 12R6235** AR Filler, memory airflow
7 12R6700* AR Baffle, single
8 NONUM AR Baffle, double
See Processor parts AR Processor MCM kit
See Backplane parts 1 Node backplane
