ibm power6 5786, 5787, 7031-D24, and 7031-T24 system parts

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
1		12R8505*	1	Front cover assembly stand-alone
2		12R8373*	1	Side cover assembly stand-alone, left
3		12R8376*	1	Side cover assembly stand-alone, right
4		12R8379*	1	Footstand assembly stand-alone
5		1624741*	4	Screw, M3 x 4 pan head

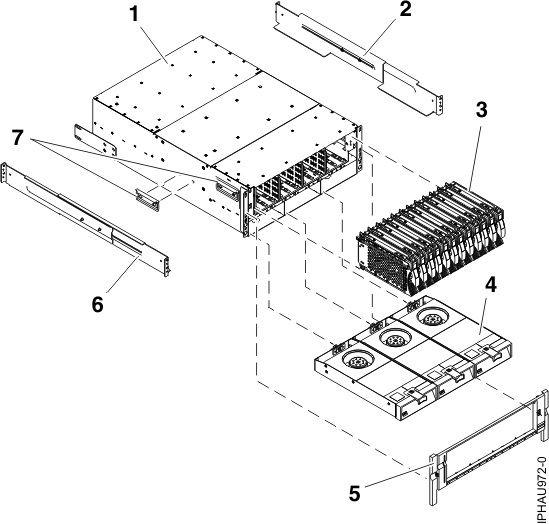

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
1		41U0299*	1	Rack configured chassis assembly (includes chassis, disk drive backplane, VPD card). Removal and replacement procedures are sent with the FRU.
1		41U0301*	1	Stand-alone configured chassis assembly (includes chassis, disk drive backplane, VPD card). Removal and replacement procedures are sent with the FRU.
2		39J2051*	1	Mount Rail assembly (7031-D24 only)
2		97P4178* 3P5556**		DASD bezel (not shown)
2		97P4179* 53P6213**		DASD filler panel (not shown)

3		03N5260* 00P3833**	1-12 per side	73.4 GB Disk drive with U320 carrier, 10K RPM, 80 pin
3		03N6325* 00P3072**	1-12	73.4 GB Disk drive with U320 carrier, 10K RPM, 80 pin
3		03N5265* 00P3835**	1-12	146.8 GB Disk drive with U320 carrier, 10K RPM, 80 pin
3		03N6330* 00P2665**	1-12	146.8 GB Disk drive with U320 carrier, 10K RPM, 80 pin
3		03N5270* 80P3157**	1-12	300 GB Disk drive with U320 carrier, 10K RPM, 80 pin
3		03N6335* 80P3400**	1-12	300 GB Disk drive with U320 carrier, 10K RPM, 80 pin
3		03N5275* 80P3159**	1-12	36.4 GB Disk drive with U320 carrier, 15K RPM, 80 pin
3		03N6340* 00P2693**	1-12	36.4 GB Disk drive with U320 carrier, 15K RPM, 80 pin
3		03N6345* 00P2685**	1-12	73.4 GB Disk drive with U320 carrier, 15K RPM, 80 pin
3		03N5285* 80P3911**	1-12	3.5 inch 146 GB SCSI DASD, 15 K RPM
3		10N8578*	1-12	300 GB Disk drive with U320 carrier, 15K RPM, 80 pin
3		03N5270* 80P3157**		300 GB Ultra320 10K rpm 80 pin SCSI disk drive/carrier
3	4326	39J3695	1-12	3.5 inch 35 GB SCSI disk drive, 15K RPM (IBM i)
3	4327	39J3696	1-12	3.5 inch 70 GB SCSI disk drive, 15K RPM (IBM i)
3	4328	39J3697	1-12	3.5 inch 141 GB SCSI disk drive, 15K RPM (IBM i)
4		15R6792* 12R9950**	3	Fan assembly
5		41U0264*	1	Mount Rail assembly (See index number 2 in this table)
7		12R8511* 90H9196**	3	Chassis handle

Index number	CCIN	Part number	Units per assembly	Description	Mobile Phone
1				Chassis assembly (refer to table 2 for part number)
2				Disk drive assemblies (refer to table 2 for part number)
3	506E	12R9042* 12R7477**	1-4	SCSI repeater card assembly single
3	506D	12R9040* 12R7475**	1-4	SCSI repeater card assembly dual
3		12R7457*	1-2	966 W power supply Note Use with a power supply that has the same wattage. If a 966 W power supply is not available, replace both 966 W power supplies with 845 W power supplies.
4		15R7998*	1-2	845 W power supply (5786 or 5787) Note Use with a power supply that has the same wattage.
4		12R7454*	1	Power supply filler assembly (not shown)
5		12R6121*	1	Left chassis bracket
6		12R6122*	1	Right chassis bracket
